Wireless Controls and Automation



Industrial Wireless Radio Controls

  Performance
.
Range ( 5 km )  3 Miles
Operation:  120/240VAC Available in 12VDC, 24VDC or 24VAC (Special Order)
Transmitter Handheld multichannel
Multiple Transmitters and Receivers
• Relay Output Momentary SPDT, 10A Class 2 pilot duty
  Optional Output mode selection; Pulse, or Latch,  OFF / ON Delay,

Heavy Duty NEMA4, IP65 UL Fiber enclosure
• License free 150 - 160MHz Industrial ISM band
• Factory configured systems, Ready to operate
• No setup or programming required
  Not limited to line-of-sight communication




2m


915404  NEMA4 System 4 Channel


915408  NEMA4 System  8 Channel


916022  Handheld Transmitter 3km

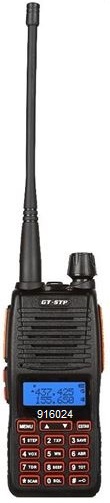

916024  Handheld Transmitter 6km

916604  NEMA4 Receiver 4 Channel
916544  NEMA4 Receiver 8 Channel

 Please request a quotation


   Specifications      Handheld Transmitter
Supply power Rechargeable battery
Supplied Power charger, Antenna, instructions
Transmitter power 30 dBm, per FCC Part 15.249,  50mV/m @ 3m
Transmission Digital Encoded  EDTMF
Channels 16 addresses and up to 199 codes per system
Input Keypad Channel number, frequency, mode, etc
Response Loop 500 msec
Weight 8 Oz  (230g)
Dimensions Portable 5"H x 3"W x 1.2"D


   Specifications      Digital Base Receiver
Supply power 120/240VAC or 12VDC /  5watt
Output   Relay SPDT 10Amp, Class 2 pilot duty
Frequency 160 MHz  • License free Industrial ISM band
Configuration DIP factory preset ( Two way voice communication )
Compliance FCC CFR part 15.247, 95 sub E
Wiring DIN Screw Terminals
Antenna Z 50 Ohm SO239 RF connector
Ambient temp  14° to 140° F (-10° to 60° C)
Enclosure  NEMA4, IP65 Fiber UL listed
Dimensions 12Hx10Wx6D inches

Options and Modules:
Transmission frequency choice VHF and UHF
Fail safe poling module; Power or carrier loss supervision
Battery backup module;  UPS system for continuous operation
Extended range repeater;  Solar or power based



DISCLAIMER:
Radio control equipment in not to be used in life safety.
Radio Installations shall be performed by a certified professional.


Credit Cards Wireless Range:  5 Km   ( 3 Miles )
Optional Extended range up to to 16 Km (10 Miles)


Applications


Industrial remotes, Pump control, Lighting control, Traffic systems, Signs,
Logistics, Packing and mobile system, Water management, Alarms,
Remote tank level operation, Generators
Solar sw,  Irrigation control.

   .

.

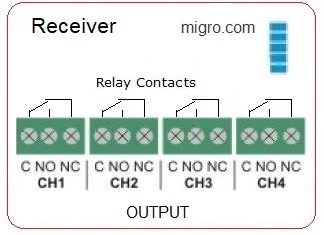

Transmitter 4 Channel Receiver Module

    Transmitter


  Output mode for each channel,


  Optional:
Latch / Toggle, Single Shot
  On Delay Timer, Off Delay Timer,

  Start Stop Module w Fail Safe Class 2




migrocom165

  Typical application with combined Base and Portable transmitters
  Example with 8 Channels,  Receiver 4x4


4 Relay outputs controlled by the Base transmitter and

4 Relay outputs controlled by the Handheld transmitter
