      Antennas  omni and yagi  Frequency 420 to 450 MHz.            NEW  150MHZ antenna selection

938091
6" Omni Antenna 938091 Short Range
433 MHz, Unity gain, Impedance 50 ohms
Magnetic base
With 60 inch Coax Cable and SMA m connector


938091    $19.99 ea


14" Omni Antenna 938092

433 MHz, 3dBi  gain, Impedance 50 ohms Magnetic base
With 120 inch (3M) Coax Cable and SMA m connector

938092    $39.99 ea


938092




3 Element Beam  Yagi Antenna
433 MHz, Gain: 7 dBi  Rating: 150 Watts
Impedance 50 ohms N terminal
Vertical beam 45 degrees - Horizontal beam 60 degrees
Base Length: 18", Weight: 1.0lb

938432    $179.99 ea





5
Element Beam  Yagi Antenna 938455
433 MHz, Gain: 9 dBi  Rating: 150 Watts
Impedance 50 ohms
N terminal
Vertical beam 55 degrees - Horizontal beam 60 degrees
With N female termination
Base Length: 32", Weight: 4.0lb

938433   $249.99 ea

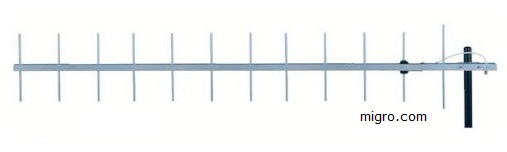

12 Element Beam  Yagi Antenna
433 MHz, Gain: 14 dBi  Rating: 150 Watts
Impedance 50 ohms
N terminal
Vertical beam 42 degrees - Horizontal beam 45 degrees
With N female termination
Base Length: 64", Weight: 5.0lb - Special Order

938434   $369.99 ea




Omni base antenna 938450
433 MHz, Gain: 5 dBi  Rating: 250 Watts
Impedance 50 ohms
N terminal
Vertical beam 45 degrees With N female termination
Length: 34", Weight: 3.0lb

938450    $189.99 ea



Omni base antenna 938453
433 MHz, Gain: 9 dBi  Rating: 250 Watts 938453
Impedance 50 ohms N terminal
Length: 98", Weight: 11.0lb  - Special order

938453   $399.99 ea








10 Feet RG58 Coax with N Male and SMA Male

938666    $69.99


30 Feet Low Loss RG8 Coax with N Male and SMA Male

938667    $159.99


Special configuration
antennas by request



 Request form
