Transmitter & Receiver   943301

  Performance
3 km (2 Miles)   line-of-sight w Yagi antenna
Operation:  120/240VAC or 12VDC
Transmitter input N/O Dry contact
• Relay Output SPDT, 6A Class 2 pilot duty
Heavy Duty NEMA4, IP65 UL Fiber enclosure
• License free 430 - 450MHz Industrial ISM band
• Factory configured systems, Ready to operate
• No setup or programming required
Specifications
                                                                                       .Please request a quotation

.
 Operation each channel  Transmitter Receiver
      Continuous

     Start Stop Mode
Close switch Ch 1
Open switch Ch 1

Close switch Ch 1
Close switch Ch
2

Relay 1   ON
Relay 1  OFF

Relay 1   ON
Relay 1   OFF

   Specifications      Digital Transmitter
Supply power 120/240VAC or 12VDC /  8watt
Inputs  N/O Normally Open, digital dry contact
Transmitter power per FCC Part 15.249,  50mV/m @ 3m
Transmission Digital Encoded   Gaussian_frequency-shift_keying
Channels 16 addresses per system  GFSK
Input Wiring Din Terminals,  Dry Contact
Response Loop 500 msec
Weight 12 lb (5.40kg)  each unit
Dimensions * 12"W x 8"H x 4"D (300 x 200 x 100 mm) * may vary

   Specifications      Digital Receiver
Supply power 120/240VAC or 12VDC /  5watt
Output   Relay 6Amp, Class 2 pilot duty
Frequency 433 MHz  • License free Industrial ISM band
Configuration DIP switch factory preset
Compliance FCC CFR part 15.247, 95 sub E
Wiring Screw Terminals
Antenna Z 50 Ohm SMA RF connector
Ambient temp  14° to 140° F (-10° to 60° C)
Enclosure  NEMA4, IP65 Fiber UL listed

3 Element Beam  Yagi Antenna

938432

3 Element Beam  Yagi Antenna
433 MHz, Gain: 7 dBi  Rating: 150 Watts
Impedance 50 ohms N terminal
Vertical beam 45 degrees - Horizontal beam 60 degrees
Base Length: 18", Weight: 1.0lb

Yagi Antenna w 12ft Coax Cable & RF Connector



Special Options:




■ Fail Safe sequence module
■ Momentary contact closure (pulse)
■ Battery Backup module
■ Low Battery Alarm
■ Latching Mode
■ OFF or ON Delay timer
Start Stop Module w Fail Safe Class 2
■ High, Low Status level indicator lamp

Optional Solar power pack



DISCLAIMER:
Radio control equipment in not to be used in life safety.
Radio Installations shall be performed by a certified professional.

.


  Wireless Range from: 3 Km   (2 Miles )

Optional Extended range up to to 16 Km (10 Miles)

Applications
:
Industrial Monitoring, Pump control, Monitor remote instruments, sensors,
Lighting control, Packing and mobile system, PLC remote, SCADA,
Factory process control,  Alarms, Generators,  Solar,  Wire replacement.

   .Please request a quotation

   Part #    Channel

943301   Single (1)
943302   Two  (2)
943304   Four (4)

  Basic Package include:
One  Base Transmitter, One  Base Receiver
Two Yagi 938432 Antennas with 12ft coaxial cable,
NEMA 4 Fiber enclosures & Instructions


     Application Example Single Channel Control



      943381  Single Channel Wireless Control



          943382  Two Channel Wireless control with Start Stop Module

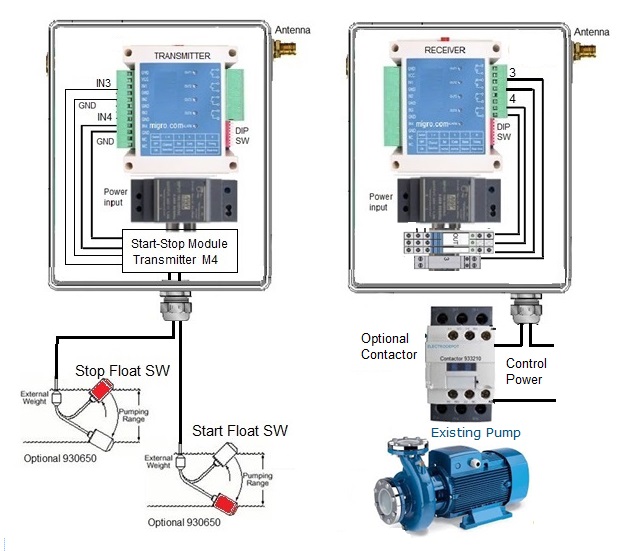

    Typical pump application

     Remote Command & Monitor

Long range with Battery Backup system 6010
