     Antennas

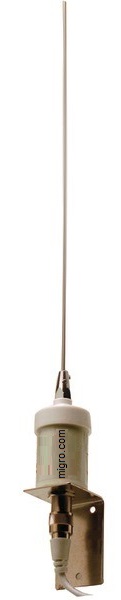

  150MHz  2 Meter   Omni Antenna ( 5/8 )








Frequency 140-170 MHz
Gain  4.5 dBi
Overall Length 37 inches
Impedance 50 Ohms
 Connector SO-239
Max Power 150 Watts
VSWR 5MHz < 1.5:1 avg.
Polarization Vertical
Wind Data 150 mph

12 Feet of 50 ohm coaxial cable,

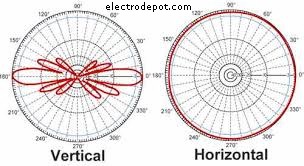

Transmission Pattern

931487    $159.99




   150MHz  2 Meter Omni  High Gain ( 7/8 )

Frequency 144-170 MHz
Gain  6.7 dBi
Overall Length 126 inches
Impedance 50 Ohms
Connector SO-239
Max Power 200 Watts
VSWR  5MHz < 1.5:1 avg.
Polarization Vertical
Wind Data 150 mph

12 Feet of 50 ohm coaxial cable,


Transmission Pattern

931490   $299.99
   150MHz  2 Meter  3 Element Yagi Antenna






Transmission Pattern

Frequency 150-174 MHz
Gain 9.2 dBi
Overall Length  42 inches
Vertical Beam 57 degrees
Impedance 50 Ohms
Connector SO-239
Max Power 200 Watts
VSWR < 1.5:1 avg.
Polarization Linear
Wind Data 150 mph

12 Feet of 50 ohm coaxial cable,


931503 Yagi   $399.99



    433 MHz Antennas


938432  3 Element Beam  Yagi



433 MHz, Gain: 7 dBi
Rating: 150 Watts
Impedance 50 ohms N terminal
Vertical beam 45 degrees
Horizontal beam 60 degrees
With 12 inch Coax
Base Length: 18", Weight: 1.0lb

938432    $179.99





    938433  12 Element Beam  Yagi



433 MHz, Gain: 14 dBi
Rating: 150 Watts
Impedance 50 ohms
N terminal
Vertical beam 42 degrees
Horizontal beam 45 degrees
With 12 inch Coax Cable
Base Length: 64", Weight: 5.0lb

938433   $369.99





    938450    37 inch Omni Base





433 MHz, Gain: 3 dBi
Rating: 250 Watts
Impedance 50 ohms
N terminal,
Vertical beam 45 degrees
 Length: 37", Weight: 3.0lb

938450    $259.99

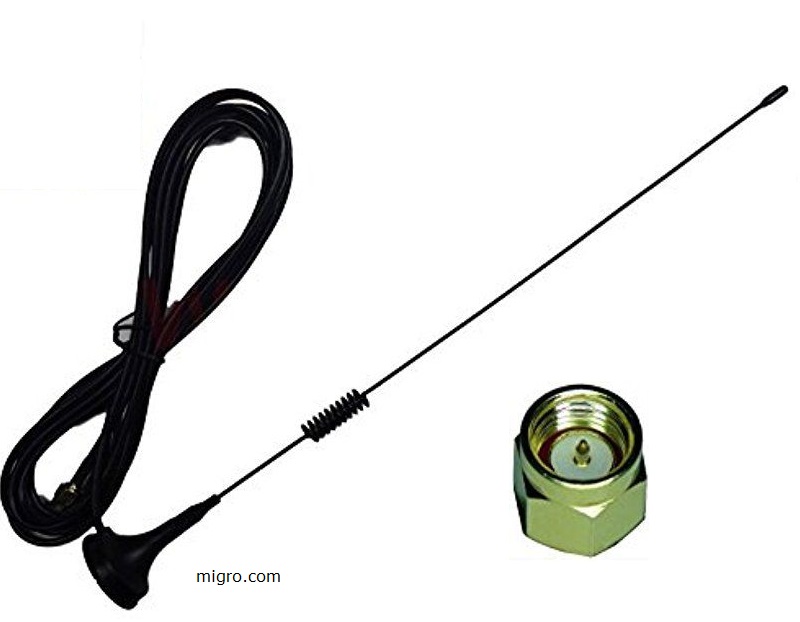

938092 OMNI DIRECTIONAL  3 dBi



14" Omni Antenna 938092

433 MHz, 3dBi  gain,
Impedance 50 ohms Magnetic base
With 120 inch (3M) Coax Cable
and SMA m connector

938092    $39.99

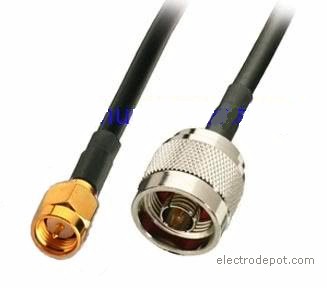

 938610 Coaxial Cable

10 Feet RG58 Coax with N Male
    and SMA Male

 938610     $69.99




 938630 Coaxial Cable

30 Feet RG8 Coax with N Male
    and SMA Male

 938610     $159.99
