Wireless Controls and Automation


Industrial Wireless Radio Controls
Panel Mount Ready

Performance
■ 1 Mile (2.km) line-of-sight 938432 ant.
■ 3 Miles (5 km) line-of-sight 938433 ant.
■ 1200. f (300.m) in-building range 3dbi
■ Input Dry isolated contact N/O
■ Relay output SPDT 6 Amp 240V/30V


Installation features
■ Operation license-free 433MHz ISM band
■ Easy installation,
No programming
■ Panel mount or clip onto DIN-35mm rail

 Operation   Transmitter Receiver
 Continuous: Close switch
Open switch
Relay ON
Relay OFF
.

Specifications

Applications:
Industrial Monitoring,
Pump control, Monitor remote
 instruments, sensors,
Lighting, Packing and mobile
 system, SCADA, PLC
Factory process control
 and alarms. Generators
Solar, Wire replacement

Wiring example*



.
931281 Single (1) Channel  Picture

Transmitter - Receiver
12V


931281    $599.99

Add the Antennas

931282  Two (2) Channel  Picture

Transmitter - Receiver
12V

931282  $699.99

Add the Antennas

931284 Four (4) Channel  Picture

Transmitter - Receiver
12V

931284  $999.99

Add the Antennas

932281 Single (1) Channel  Picture

Transmitter - Receiver
120/220VAC

932281  $799.95

Add the Antennas

932282  Two (2) Channel  Picture

Transmitter -Receiver 120/220VAC

932282  $899.95

Add the Antennas

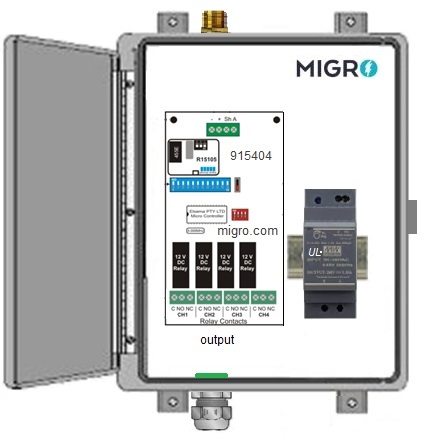

932284 Four (4) Channel  Picture

Transmitter Receiver
120/220VAC

932284   $1,199.95

Add the Antennas


   Specifications      Digital Transmitter
Supply power 12 VDC @ 400 mA
Inputs  N/O Normally Open, digital dry contact
Transmitter power per FCC Part 15.249,  50mV/m @ 3m
Transmission Digital Encoded   Gaussian_frequency-shift_keying
Channels 16 addresses per system  GFSK
Input Wiring Din Terminals,  Dry Contact
Response Loop 500 msec
Weight 0.8 lb (0.40kg)  each unit
Dimensions 4.50 x 3.50 x 3.25 in. /
(114.30 x 88.90 x 86.75 mm)

   Specifications      Digital Receiver
Supply power 12 VDC  @ 300 mA
Output   Relay SPST  contact 6.Amp, 30V/240vac  Class 2 pilot duty
Frequency 433 MHz  • License free Industrial ISM band
Configuration DIP switch factory preset
Compliance FCC CFR part 15.247, 95 sub E
Wiring Components mounted on 35mm DIN rail
Antenna Z 50 Ohm SMA RF connector
Ambient temp  14 to 140 F (-10 to 60 C)
DIN Rail  IP22, UL94-5VA, DIN mount 35mm or panel mount

  930080 series      Wiring





Antenna Selection ( TWO  are required )




938433  Yagi antenna 12 E

 14 dBi  3 Mile+
 Length: 43", Weight: 3.lb

 with 10 ft coax cable and connector

$279.99






938432   Yagi antenna 3 E

7 dBi  1 Mile+
Length: 18", Weight: 1.lb
with 10 ft coax cable and connector

$149.99

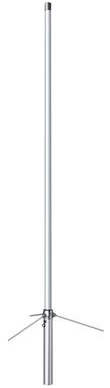

938438  Omni directional antenna

3 dBi  1 Mile+
Length: 37", Weight: 3.lb
with 10 ft coax cable and connector

$199.99





938091,   7" Omni Antenna

0 dBi Short range
5ft coax cable
  SMA

$29.99



  Accessories:

Contactors
933020 Miniature Contactor

20A, 3 Pole, 12VDC Coil
2HP @240V, 7.5HP @460V
1HP @120V,
4 KW@ 220V
20Amp AC-1, 12Amp. AC-3
Screw Terminals, 600V,
1 N.O. Aux.,
DC Coil Current : inrush/sealed  250mA
Dimension: 1.7 x 2.5 x 2.3 in
 (45 x 64 x 58 mm)
Surface or DIN rail mountable

12VDC Coil   $49.99

.

Series 931201
SPDT
Electromechanical Relay,
DIN Rail,
Contact 16A @240V
Coil Selection:  12, 24, 120V

  $39.99

.

Mechanical Float Switch

930650     $69.99

.

DISCLAIMER:  Radio control equipment in not to be used in life safety.
Radio Installations shall be performed by a certified professional.
