Industrial Wireless Radio Controls


Please request a quotation

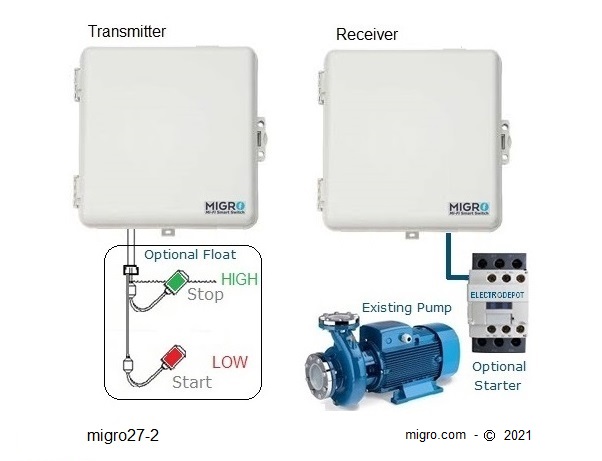

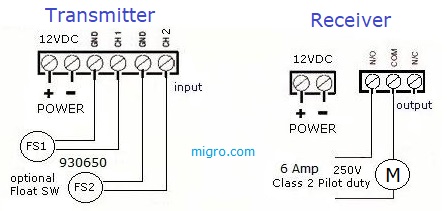

915428  Start - Stop  Two Channel  System:

One Transmitter Two Channel in Weatherproof Enclosure
One Receiver Single Channel output in Weatherproof Enclosure
Two Omni Antennas 931487

with 12ft Coax Cable

Operation: Example
In Low  Level CH 1 Close:,  Pump Start.
In High Level CH 2  Close:,  Pump Stop.

150MHz  2 Meter   Omni Antenna ( 5/8 )150MHz  2 Meter   Omni Antenna ( 5/8 )



 Please request a quot.ation

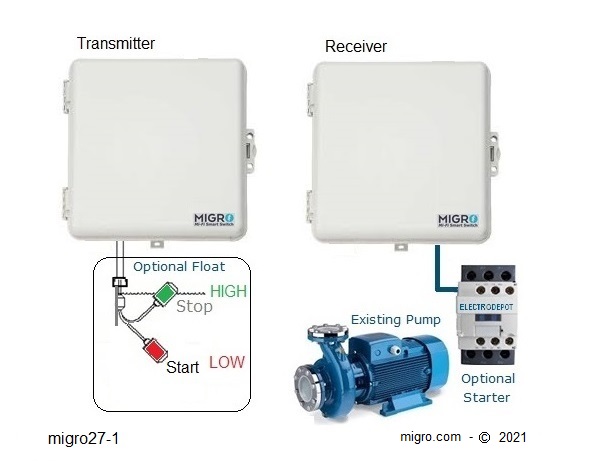

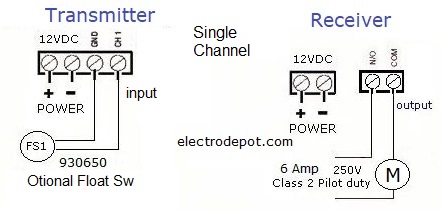

915427  Fail - Safe  Single Channel  System:

One Transmitter One  Ch in Weatherproof  Enclosure
One Receiver in Weatherproof Enclosure
Two Omni Antennas 931487
with 12ft Coax Cable

Operation: Example
In Low Level SW1 Close:,  Pump Start.
In High Level SW1  Open:  Pump Stop.  ( 30 Second OFF Delay)

150MHz  2 Meter   Omni Antenna ( 5/8 )150MHz  2 Meter   Omni Antenna ( 5/8 )



   Remote operation for: Pumps, Lighting, Process, Alarms, Gates, Valves,


Performance

• 3 miles ( 5 km) line-of-sight w Omni antenna
 Extended range up to 20 km
Operation:  120/240VAC or 12VDC
Transmitter input N/O Dry contact
Receiver with signal strength indicator
• Relay Output SPDT, 6A Class 2 pilot duty
Heavy Duty Weatherproof , IP65 enclosure
• License free 154MHz Industrial MURS band
• Not limited to line of sight with High Gain Antenna
• Factory configured systems, Ready to operate
• No setup or programming required


■ Specifications 915427 & 945428  Order
   Specifications      Digital Transmitter
Supply power 120/240VAC or 12VDC /  8watt
Solar Ready 12VDC Operation
Inputs  N/O Normally Open, digital dry contact
Transmitter power Per FCC Part 15.249,  50mV/m @ 3m
Transmission Digital Encoded Gaussian_frequency-shift_keying
Channels 16 addresses per system  GFSK
Power Consumption Standby 1mA, Transmission Pulse 1000mA  Solar Ready
Response Loop 500 msec
Weight 3.8 lb (1.70kg)  each unit
  Dimensions 9"W x 9"H x 4"D (300 x 300 x 100 mm)

   Specifications      Digital Receiver
Supply power 120/240VAC or 12VDC /  5watt
Output   Relay 6Amp, SPST Class 2 pilot duty
Frequency  154MHz • License free MURS band
Configuration DIP switch factory preset
Compliance FCC CFR part 15.247, 95 sub E
Wiring Screw Terminals
Antenna Z 50 Ohm
Ambient temp  14° to 140° F (-10° to 60° C)
Enclosure  Weatherproof,    IP65
(*) Final Component layout and Dimension may vary





Applications:

Industrial Monitoring, Pump control, Monitor remote sites, Tank Level,
Lighting control, Remote Mobile system, PLC remote, SCADA, Gates.
Factory process control,  Alarms, Generators
Solar,  Irrigation,  Marinas,
Traffic controls, Wire replacement.










DISCLAIMER:
Radio control equipment in not to be used in life safety.
Radio Installations shall be performed by a certified professional.
