  Compact Wireless Radio Controls


Single Channel

              4331CH-DC        12VDC        $920.00

943301   4331CH-AC 120/240VAC      $998.00

Operation:
Channel 1 Closure,   Output 1 ON
Channel 1 Opening,  Output 1 OFF

Performance
360m (1200ft)  line-of-sight w 6 inch antenna
Operation:  12VDC  or  120/240VAC
Transmitter input N/O Dry contact
• Relay Output SPST, 6A Class 2 pilot duty
Heavy Duty Weatherproof , IP65 UL Fiber enclosure
• License free 430 - 450MHz Industrial ISM band
• Factory configured systems, Ready to operate
• No setup or programming required





   Specifications      Digital Transmitter
Supply power 12 VDC @ 400 mA
Inputs  N/O Normally Open, digital dry contact
Transmitter power per FCC Part 15.249,  50mV/m @ 3m
Transmission Digital Encoded   Gaussian_frequency-shift_keying
Channels 16 addresses per system  GFSK
Input Wiring Din Terminals,  Dry Contact
Response Loop 500 msec
Weight 2.2 lb (1.10kg)  each unit
Dimensions 9 x 9 x 3.5 in. /  (230.00 x 230.00 x 90.00 mm)
   Specifications      Digital Receiver
Supply power 12 VDC  @ 300 mA
Output   Relay SPST  contact 6.Amp, 30V/240vac  Class 2 pilot duty
Frequency 433 MHz  • License free Industrial ISM band
Configuration DIP switch factory preset
Compliance FCC CFR part 15.247, 95 sub E
Wiring Components mounted on 35mm DIN rail
Antenna Z 50 Ohm SMA RF connector
Ambient temp  14° to 140° F (-10° to 60° C)
Mounting  IP22, UL94-5VA, Plastic Enclosure IP65 9 x 9 x 3.5 in.

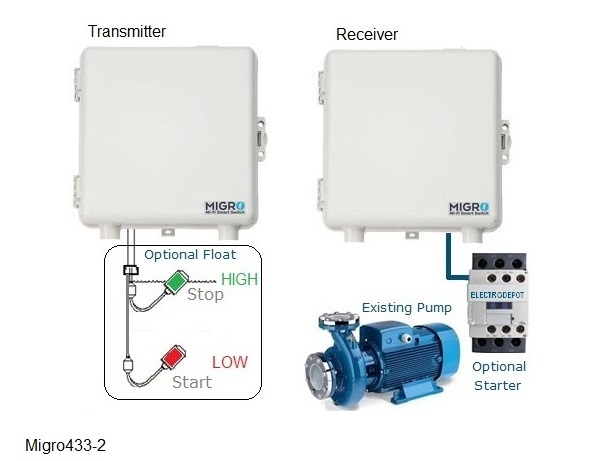

943327  Migro433-1 Single Channel Wiring Example









Start - Stop - 2 Channel

4332CH  120VAC  $1,240.00 .

Operation:
Channel 1 = Pulse signal, Start Output 1 ON
Channel 2 = Pulse signal, Stop Output 1 OFF


Accessories



Systems are supplied with Two Short Range
    Omni Antennas

6 Omni Antenna 9380916 Omni Antenna 938091


OPTIONAL
Extended Range Antenna Selection
( TWO  are required )


	938432   Yagi antenna 3 E

938432   Yagi  3E Antenna,  2Km
433 MHz, Gain: 7 dBi  Rating: 150 Watts
Impedance 50 ohms
Vertical beam 45 degrees -
Horizontal beam 60 degrees
With 10FT Coax Cable and RF Connector
Base Length: 18", Weight: 1.0lb

938432    $179.99 ea






5 Element Beam  Yagi Antenna 938455

938433 Yagi 5E Antenna,  4Km
433 MHz, Gain: 9 dBi  Rating: 150 Watts
Impedance 50 ohms
Vertical beam 55 degrees -
Horizontal beam 60 degrees
With 10FT Coax Cable and RF Connector
Base Length: 32", Weight: 4.0lb

938435   $269.99 ea






Command Radio

    Wiring

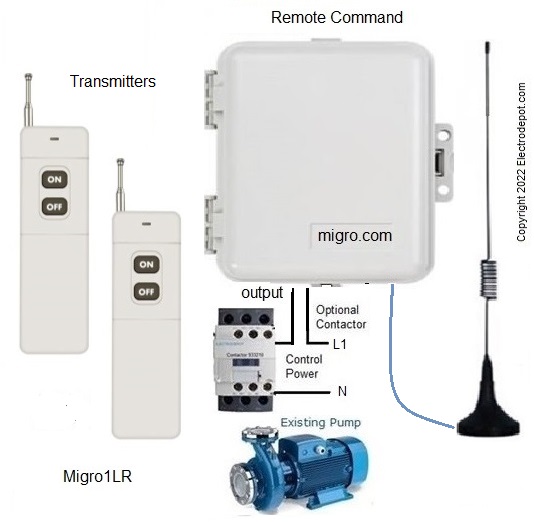

ONE Transmitter Single Channel 120VAC  MIGRO1KR   $239.99

.

TWO Transmitters Single Channel 120VAC  MIGRO1LR   $299.99

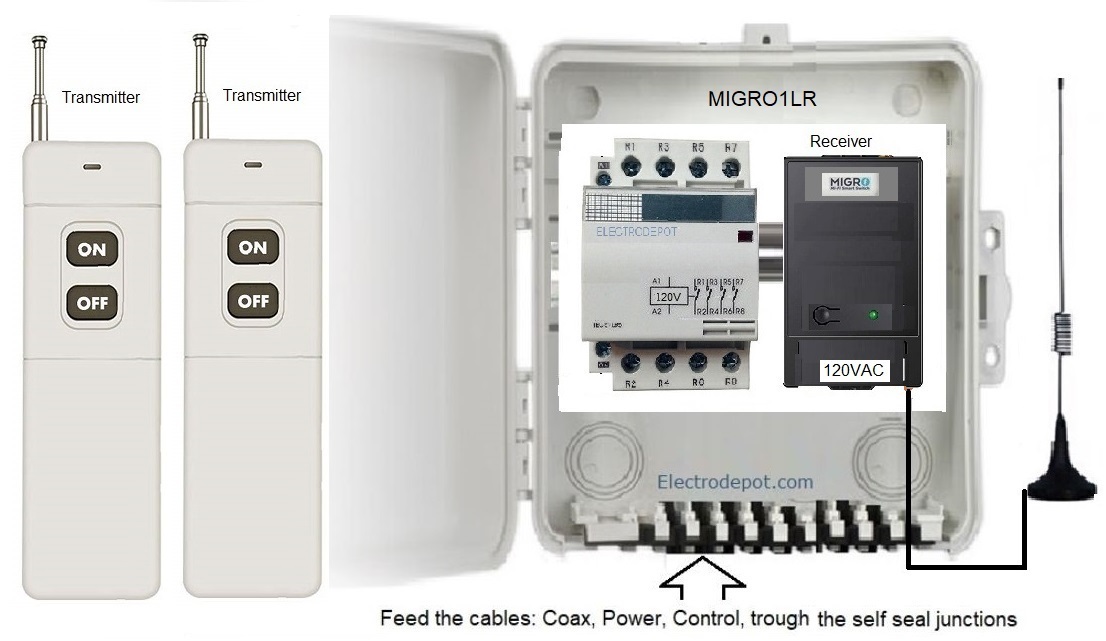

Handheld Transmitter Start - Stop operation
 with Stationary Receiver, incorporate one 4 Pole Contactor

DISCLAIMER:  Radio control equipment in not to be used in life safety.
Radio Installations shall be performed by a certified professional.
