Transmitter & Receiver   943384

  Performance
( 3 km )  2 Miles line-of-sight w Yagi antenna
Operation:  120/240VAC or 12VDC
Transmitter input N/O Dry contact
• Relay Output SPDT, 6A Class 2 pilot duty
Heavy Duty NEMA4, IP65  Fiber enclosure
• License free 430 - 450MHz Industrial ISM band
• Factory configured systems, Ready to operate
• No setup or programming required

Specifications

.
 Operation all 4 channel  Transmitter Receiver
 Continuous Close switch Ch 1 Energize Relay 1  ON

   Specifications      Digital Transmitter
Supply power 120/240VAC or 12VDC /  5watt
Inputs  N/O Normally Open, digital dry contact
Transmitter power per FCC Part 15.249,  50mV/m @ 3m
Transmission Digital Encoded   Gaussian_frequency-shift_keying
Channels 16 addresses per system  GFSK
Input Wiring Din Terminals,  Dry Contact
Response Loop 500 msec
Weight 12 lb (5.40kg)  each unit
Dimensions * 12"W x 8"H x 6"D (304 x 200 x 150 mm) * may vary

   Specifications      Digital Receiver
Supply power 120/240VAC or 12VDC /  5watt
Output   Relay 6Amp, Class 2 pilot duty
Frequency 433 MHz  • License free Industrial ISM band
Configuration DIP switch factory preset
Compliance FCC CFR part 15.247, 95 sub E
Wiring Screw Terminals
Antenna Z 50 Ohm SMA RF connector
Ambient temp  14° to 140° F (-10° to 60° C)
Enclosure  NEMA4, IP65 ABS Plastic

DISCLAIMER:
Radio control equipment in not to be used in life safety.
Radio Installations shall be performed by a certified professional.

       Wireless Range from: 3 Km  (2 Miles )

 Optional Extended range up to to 16 Km (10 Miles)

Applications:
Industrial Monitoring, Pump control, Monitor remote instruments, sensors,
Lighting control, Packing and mobile system, PLC remote, SCADA,
Factory process control,  Alarms, Generators
Solar,  Wire replacement.

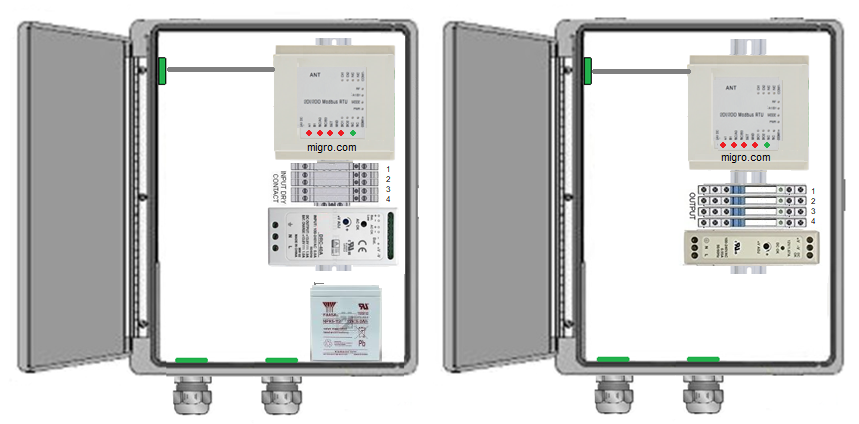

   943384  Four (4)  Channel System with Transmitter Battery Backup

Battery Back Up Specifications:
AC input range: 90 - 264VAC
Output 1: Load output voltage: 12Vdc
Current range: 0 - 2.9 Amp
Output 2: Battery output voltage: 13.8Vdc
Charging current: 1.0 Amp
934012UPS Module Charges the battery,
Alarm signal for AC Ok and Battery Low
Battery low cut off/ reverse protection
Protection: shortcut/ over load / over voltage
■ Battery not included

Request a quotation

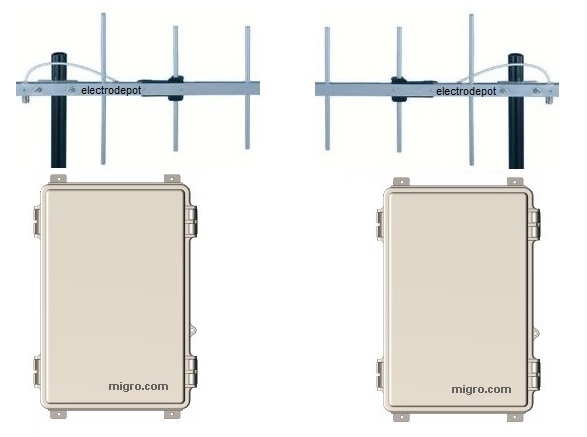

Package include:  One  Base Transmitter, One  Base Receiver
Two Yagi 938432 Antennas with 10ft coaxial cable, NEMA 4 enclosures, & Instructions
