NEMA4 Wireless Control Kit




System


 SPECIFICATIONS  and Applications
   Portable Transmitter & Base Receiver

Range ( 5 km )  3 Miles
Operation:  120/240VAC or 12VDC
Transmitter Handheld multichannel
Multiple Transmitters and Receivers
Relay Output SPDT,10A Class 2 pilot duty
  Output mode selection; Pulse, or Latch
Heavy Duty NEMA4, IP65 UL Fiber enclosure
License free 150 - 160MHz Industrial ISM band
Factory configured systems, Ready to operate
No setup or programming required
Not limited to line-of-sight communication



4 Channel Receiver Wiring  916004

Package include: (1) 916022 Handheld Transmitter,
(1) One  Base Receiver in NEMA4 (IP65) Fiber enclosure
(1) Omni Antenna with 12ft coaxial  & Instructions

TWO (2)  Channel   916612   KIT    $999.99

FOUR (4)  Channel  916614   Kit  $1,299.99

EIGHT (8)  Channel  916618   Kit  $1,999.99

Transmitters

916022

916024

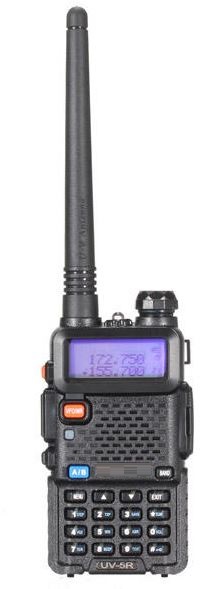

Additional Handheld Transmitter

High strength PC material frame, PTT button and keypad
  128 Memory code in different frequency, each Control up to 8 channels.
  professional transceiver with dual-band, dual-display

   General Specifications

Part Number 916022 916024
Frequency Range 136-174MHZ and 400-520MHZ 136-174MHZ and 400-520MHZ
Codes No. 128 memory 128 memory
Range KM 3KM 10KM
Output Power 5W/1W 8W/5W/1W
Antenna Impedance 50 ohm 50 ohm
Operating Voltage DC 7.4V rechargeable battery DC 7.4V rechargeable battery
Mode of operation Simple or semi-duplex Simple or semi-duplex
Antenna SMA -Female 12 CM SMA -Female 18 CM
Keypad code: Control up to 8 separate channels Control up to 8 separate channels
Dimension (HxWxD) 100 x 60 x 35 mm (#) 132 x 60 x 35 mm (#)
Weight 238g (including battery, antenna) 244g (including battery, antenna)
Power adapter Input: AC100-240V, 50-60Hz;
Output: DC10V/500mA
Input: AC100-240V, 50-60Hz;
Output: DC10V/500mA

(#) antenna dimension not included

916022 Transmitter     $79.99

916024 Transmitter    $129.99





Applications


DISCLAIMER:  Radio control equipment in not to be used in life safety. Radio Installations shall be performed by a certified professional.
