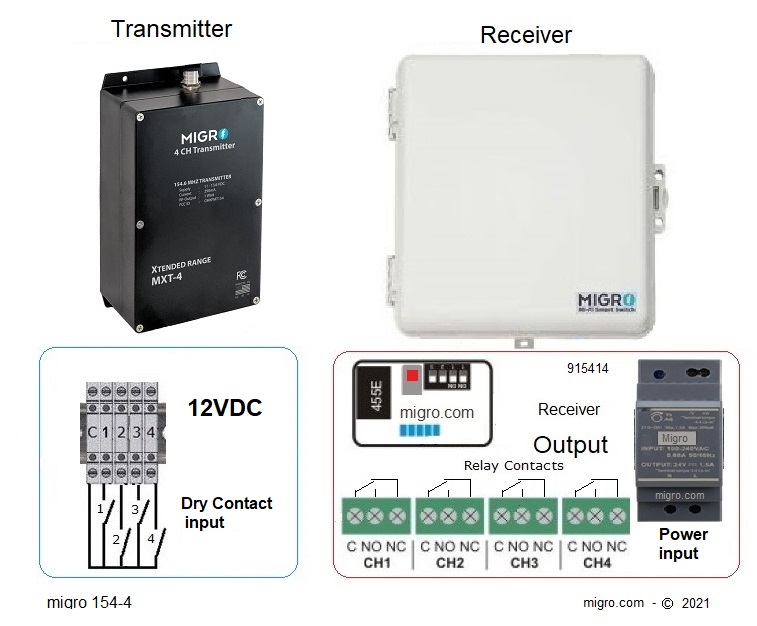

MXT-4 Transmitter 4 Channel |
91541-4 Receiver 4 Channel |
| |
|
|
|
Specifications
Digital Transmitter
|
| Supply power |
12VDC / 8Watt,
|
|
Inputs |
N/O Normally
Open, digital dry contact |
|
Transmit Mode |
Pulse 4 Seconds, or *5 Minutes Continuous |
| Transmitter power |
per
FCC Part 15.249,
50mV/m @ 3m |
| Frequency |
154MHz •
License free MURS band |
| Transmission |
Digital Encoded
Gaussian_frequency-shift keying |
|
Power |
per FCC Part 15.249, 50mV/m @ 3m |
|
Power Draw |
Standby 1mA,
Transmission 1200mA 2second |
| Response |
Loop 500 msec
|
| Weight |
3.36
lb ( 1.44kg ) each unit |
| Dimensions |
NEMA4, IP65
6.73 x 4.76 x 2.17 in. (170.94 x 120.90 x 55.12 mm.) |
|
Specifications
Digital Receiver
|
| Supply power |
12VDC / 5Watt |
|
Output |
Relay 8Amp, SPDT (NO/NC) Class 2 Pilot Duty |
| Output mode |
Momentary or Latching
|
|
Configuration |
DIP switch factory
preset |
|
Compliance |
FCC CFR part 15.247, 95 sub E |
| Power
Draw |
Standby 30mA, Full
load 400mA |
| Antenna Z |
50 Ohm, RF Connector
SO-239 |
| Ambient temp |
14° to 140° F (-10° to 60°
C) |
| Enclosure |
NEMA4, IP65
6.73 x 4.76 x 2.17 in. (170.94 x 120.90
x 55.12 mm.) |
COMPLIANCE: per FCC Part 15.249, 50mV/m @ 3m
Circuit board Compliance with UL796 and UL
94
MIL-STD-461E for Electro-Magnetic
Interference (EMI)
MIL-STD-901D Grade A for High Impact Shock
MIL-STD-167B for Vibration

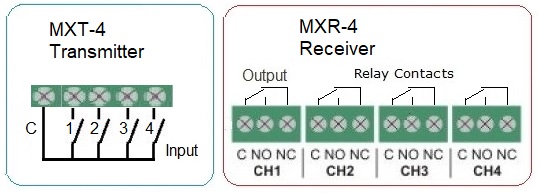

4 Channel Wiring layout
ANTENNA Selection 154Mhz -
50 Ohm:
Short range |
Medium range |
Long range |
Long range |
| 931501 |
931487 |
931490 |
931503 Yagi 3 Element |
| 2.0 dBi, 17
inch |
4.5 dBi, 37 inch |
6.7 dBi, 125 inch |
9.2
dBi, 42 inch |
| PL-259 |
SO-239
+12ft Coax |
SO-239 |
SO-239 |
|
Optional Control Modules:
|
Single
channel continuous mode module
Fail Safe sequence module, Power, Carrier
failure or end of transmission control
Comply with FCC part 15.247 sub E on Continuous
transmission timing

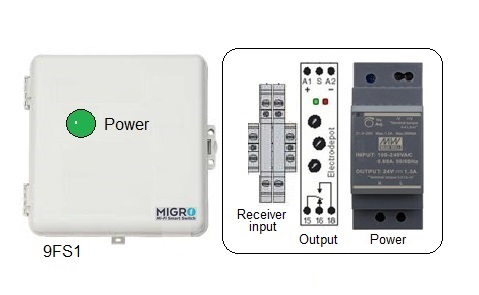

9FS1 Receiver
Module
Operating voltage 12VDC
Input: Dry Contact
Output: 10A SPDT
Enclosure Weatherproof IP65, 9x9x4 inches
NOTE: Transmitter or receiver not supplied,
|
 |
|
Four (4)
channel continuous mode module
Fail Safe sequence module, Power, Carrier
failure or end of transmission control
Comply with FCC part 15.247 sub E on Continuous
transmission timing
9FS4 Receiver
Module
Operating voltage 12VDC
Input: Dry Contact
Output: 8A SPST
Enclosure Weatherproof IP65, 9x9x4 inches
NOTE: Transmitter or receiver not supplied,
|
 |
|
Start/Stop output Module
9SS1: Two input from the receiver,
One output to energize the external contactor
Operating voltage 12VDC
Input: Dry Contact
Output: 10A SPDT
Enclosure Weatherproof IP65, 9x9x4 inches
NOTE: Transmitter and receiver not supplied,
|
 |
| |
|
|
|
DISCLAIMER:
(*) Maximum
continuous transmission time per FCC; 5 minutes
Radio control equipment
in not to be used in life safety.
Radio Installations shall be performed by a certified
professional |
|
Extended Range
MX Modules
Performance
6 miles ( 10
Km )
line-of-sight
• Extended range up to 20
Km
•
Not limited to line-of-sight communication
Applications: Industrial Monitoring, Pump control, Monitor remote sites, Tank Level, Lighting control, Remote Mobile system, PLC remote, Irrigation,
Gates, Valves, Factory process, Alarms, Generators, Solar, Wire replacement.
MXT-4 Up to 10 Km of line-of-sight range
MXTH-4 Up to 3 Km handheld device
Migro Encoding/Decoding technology
Four (4) Independent Channels
Output mode selection: Latch or Momentary
Shielded Die cast Metal Case NEMA4 - IP65
Antenna 931501 or 931487 (not
included)
Power: 12 VDC - Solar Ready
Dip Switch 12 Bit Code setting
Optional repeater if necessary
Multiple Transmitters and Receivers
Factory pre- configured system, Ready
No setup or programming required
No fees from carriers, No hacking
No software or internet
Not limited to line-of-sight communicationOptional Modules
and Accessories
■
Fail Safe sequence module
■
Single Channel ON/OFF,
■
Battery Backup module
■ Low Battery Alarm■ Repeater
|
|
|
