 Industrial Wireless Radio Controls
Please
Request latest price
|
Performance
•
3 miles ( 5 km)
line-of-sight w Omni antenna
• Extended range up to 20 km
• Operation: 120/240VAC
or 12VDC
•
Transmitter input N/O Dry contact
•
Receiver with signal strength indicator
• Relay Output SPDT, 6A Class 2 pilot duty
•
Heavy Duty NEMA4, IP65 UL Fiber enclosure
• License free 154MHz Industrial
MURS band
• Factory configured systems, Ready to operate
• No setup or programming required
■

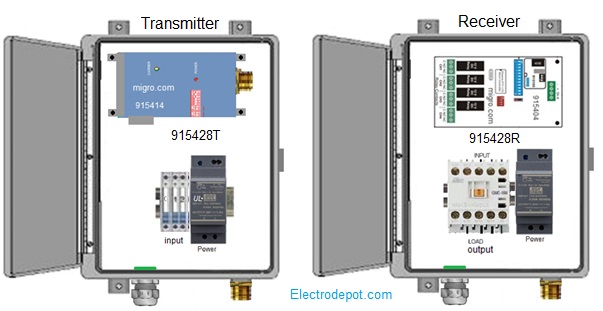

Complete
system:
One Transmitter 2 Ch in NEM4 Enclosure
One Receiver with Red and Green Lamps
Two Omni Antennas 931487 Antenna Selection
Operation:
Example
■ If Low
Level SW Close: Red light ON, Pump Start.
■
If
High Level SW Close: Green light ON, Pump
Stop.
Monitoring:
■ Red
light indicates the tank level
is low
■ Green
light indicates the tank level
is high
Basic System without indicators
 |
 DISCLAIMER:
Radio control equipment
in not to be used in life safety.
Radio Installations shall be
performed by a certified professional. |
|
|
Remote
operation for:
Pumps, Lighting,
Process, Alarms,
Monitoring, Valves.
■
Applications:
Industrial Monitoring, Pump control, Monitor remote
sites, Tank Level,
Lighting control, Remote Mobile system, PLC remote, SCADA,
Gates.
Factory process control, Alarms, Generators,
Solar, Wire replacement.
|
|
■

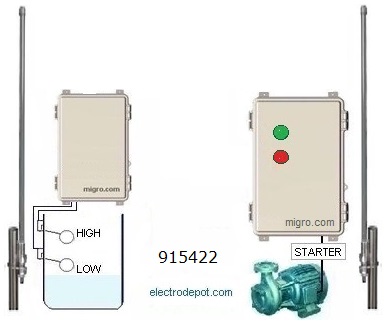

915422 |
With High and Low Status indicator at
the Receiver |
| Supply power |
120/240VAC or
12VDC / 8watt |
|
Inputs |
N/O Normally
Open, digital dry contact |
| Transmitter power |
per
FCC Part 15.249,
50mV/m @ 3m |
| Transmission |
Digital Encoded
Gaussian_frequency-shift_keying |
|
Channels |
16 addresses per system
GFSK |
|
Power Consumption |
Standby 1mA,
Transmission Pulse 1200mA, Solar Ready |
| Response |
Loop 500 msec
|
| Weight |
6.8 lb (3.40kg)
each unit |
| (*) Dimensions |
12"W x
10"H x
6"D (300 x 250 x 150 mm) |
|
Specifications Digital Receiver
|
| Supply power |
120/240VAC or
12VDC / 5watt |
|
Output |
Relay 6Amp, SPDT Class 2 pilot duty |
| Frequency |
154MHz •
License free MURS band |
|
Configuration |
DIP switch factory
preset |
|
Compliance |
FCC CFR part 15.247, 95 sub E |
| Wiring |
Screw Terminals |
| Antenna Z |
50 Ohm, SO-239 |
| Ambient temp |
14° to 140° F (-10° to 60°
C) |
| Enclosure |
(*)
NEMA4, IP65
|
(*) Final Component layout and Dimension may vary
|

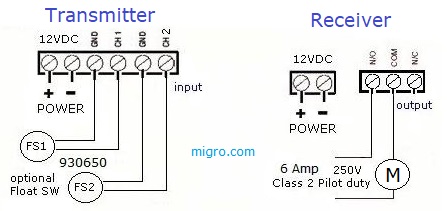

Typical
wiring application example
|
