  Silent Power & Lighting Contactor
.

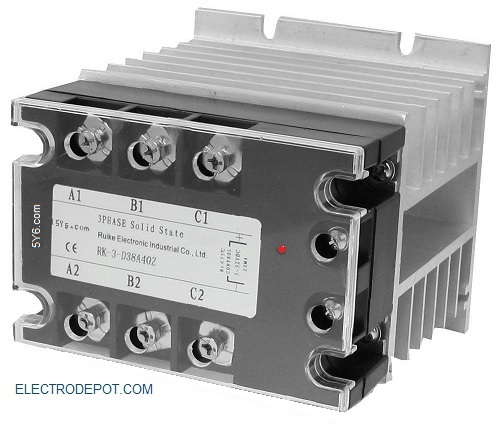

Solid state contactor with heat sink.

Silent ultra quiet  operation,  Normally open contacts
No acoustical sound, No closure click, No vibration, No humming

Applications: Studios, Lighting, Heater, Automation, Harsh environments

Energy saving very low power drain, no moving parts
       Features:
  • Power ON LED indicator
  • Normally open (N.O.) contacts
  • Solid Conductor:
     25 mm2  Max torque 0.6 Nm
  • Stranding Conductor:
     16 mm2,  Max torque 0.6 Nm
  • Max switching 1000 switch/hr
  • No humming, No noise, No sound
  • CE approved. IEC 60664-1

  • Control: 3-32VDC  or  80-240VAC
  • Coil: 3VA inrush, 1VA sealed
  • Power: 120- 480VAC
  • Electric strength: 4 kV
  • IEC AC Rate:  AC-1;  16 kW,
          AC-3; 11 kW @400V
  • Operating Temperature
          -30…+70 °C (-22…+158 °F)
  • Size (Approx.) 10.9 x 7.8 x 12.8cm /
          4.3" x 3.1" x 5" (L*W*T);
  • Screw Dia : 0.4cm / 0.157"
  • Weight : 997g  / 2.20 Lbs

  •         Multi pole      -     Single pole


    40 Amp  3 Pole,  480 VAC Contactors
    40 A. Incandescent or resistive load,  30 A. Inductive load

    963120     400V,     Coil  90-240VAC    $99.99

    963805      480V,     Coil  5-24VDC      $99.98

    (1A)  963824    480V, Coil  24 VAC      $158.99

     963811  480V, Coil 120/240VAC   $119.99

     963877  480V, Coil 277VAC   $147.99


    (1)
    With Coil Driver - SPECIAL ORDER
    1A



    100 Amp  3 Pole,  480 VAC Contactors
    100 A. Incandescent or resistive load60 A. Inductive load

      973120  400V,  Coil   90-240VAC    $239.99

    973805       480V,     Coil   5-24VDC      $149.98

    (1A) 973824    480V,    Coil 24 VAC     $219.99

      973811  480V,  Coil 120/240VAC    $229.99





    973406 Up to #6AWG, 6 Pcs

    Power Lug Kit  $24.99

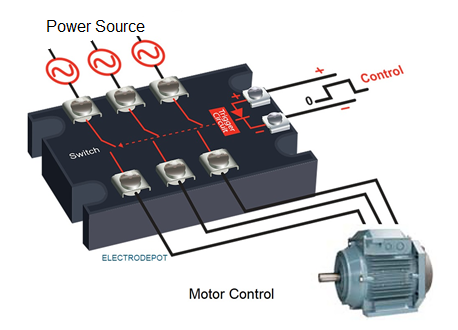

     Contactor Wiring*
