32 Amp. AC-1, 18 Amp. AC-3
 Normally Open (N.O.) contacts 600V
 32A. Incandescent, LED or resistive load
 20A. Ballast, Motor 7.5HP @480V
Auxiliary contact  1NO/1NC
Power Lug Terminal Capacity AWG # 6
 Coil 110/120VAC
  Details*        Specifications

 Definite Purpose FLA 50A
40 Amp  2 Pole,  600 VAC
50A AC-1, 40A. AC-3  600V
Lighting - Refrigeration - HVAC
Dim: 2.75 x 2.0 x 3.0 in (70 x 50 x 75 mm)
Power Lug Terminal Capacity AWG # 2
Coil  24VAC
  Specifications

. To Order

40 Amp.  4 Pole  (Silent Operation)
 Normally Open (N.O.) contacts
 For 120/220/277/Rated 500V,
 7.5HP @240V, 15HP @460V
 40A. Ballast, 7 KW@ 220VAC
Dimension: 2.2w x 3.3h x 2.5d inch
 40Amp AC-1,  30Amp AC-3
Power Lug Terminal Capacity AWG # 4
Coil 110/120VAC
Specifications   add DIN rail



40Amp.  4 Pole N/C  (Silent Operation)
 Normally closed (N.C.) contacts
For 120/220/277/Rated 400V,
40A. Incandescent or resistive load AC1
32A. Ballast and General purpose  AC3
Power indicator, DIN mount
Dim: 2.2 x 3.5 x 2.5 in (55 x 90 x 70 mm)
Power Lug Terminal Capacity AWG # 4
Coil 110/120VAC
Specifications     add DIN rail

40 Amp.    4 Pole    944120
Normally Open (N.O.) contacts
NEMA Definite purpose
10HP @240V, 15KW 277VAC
40 A. Ballast, 7 KW@ 220VAC
50A AC-1, 40A. AC-3  600V
Lighting - Refrigeration - HVAC
Dim: 2.75 x 3.5 x 3.0 in (70 x 90 x 75 mm)
Power Lug Terminal Capacity AWG # 4
120VAC coil    SPECIFICATIONS

40 Amp.    3 Pole    943120
Normally Open (N.O.) contacts
NEMA Definite purpose
10HP @240V, 15KW 277VAC
40 A. Ballast, 7 KW@ 220VAC
50A AC-1, 40A. AC-3  600V
Lighting - Refrigeration - HVAC
Dim: 2.75 x 3.5 x 3.0 in (70 x 90 x 75 mm)
Power Lug Terminal Capacity AWG # 4
120VAC coil

100 Amp. 4 Pole  Slim contactor
Normally Open (N.O.) contacts
For 120/220/277/Rated 500V,
50A. Ballast, 10 KW@ 220VAC, 15KW@277V
100A  AC-1,  40A. AC-3
40A, 24VDC, DC Switching
Power indicator, DIN mount
Dim: 110 x 81 x 68 mm) Dimensions
Power Lug Terminal Capacity AWG # 2/0
120VAC coil

. To Order

100 Amp. 4 Pole   Slim contactor
Normally closed (N.C.) contacts
For 120/220/277/Rated 500V,
50A. Ballast, 10 KW@ 220VAC, 15KW@277V
100A  AC-1,  40A. AC-3
40A, 24VDC, DC Switching
Power indicator, DIN mount
Dim: 110 x 81 x 68 mm) Dimensions
Power Lug Terminal Capacity AWG # 2/0
120VAC coil

. To Order

933021 Miniature Contactor
20Amp, 3 Pole, 120VAC Coil
2HP @240V, 7.5HP @460V
1HP @120V,  20Amp AC-1, 12Amp. AC-3
Screw Clamp Terminals, 600V, 1 N.O. Aux.,
AC Coil Current Inrush 32VA, Sealed 6VA
Dim: 1.7 x 2.5 x 2.3 in (45 x 64 x 58 mm)
Power Lug Terminal Capacity AWG # 8

933020 Miniature Contactor
20Amp, 3 Pole, 12VDC Coil
2HP @240V, 7.5HP @460V
1HP @120V,  20Amp AC-1, 12Amp. AC-3
Screw Clamp Terminals, 600V, 1 N.O. Aux.,
DC Coil Current Inrush/Sealed  250mA
Dim: 1.7 x 2.5 x 2.3 in (45 x 64 x 58 mm)
Power Lug Terminal Capacity AWG # 8

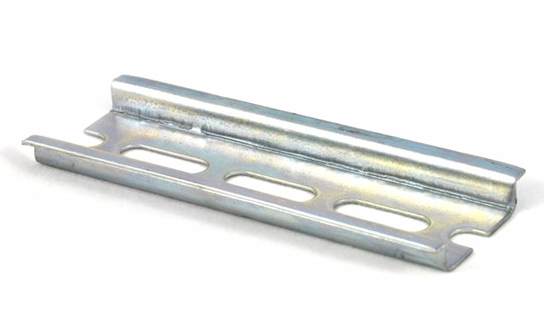

 DIN rail 10cm (3.98inch)

DIN rail 20cm (7.87inch)
