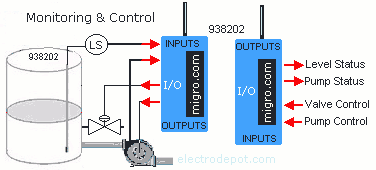

Wireless Controls and Automation

           Wireless Links                                                                I/O Point-to-Point Monitoring and Control
Migro® Bidirectional - Two Way
.
No parameterization nor programming required
No Internet, Transparent I/O System
No Third party cell, No monthly fees
You have full control over your own carrier
Power system 12/24VDC solar ready
Real time status feedback from the remote site
Fast installation and easy setup


Special application request form

  2 Miles (3.km) line-of-sight with Yagi 7 dBi antenna
 ■  Range • 1500. feet (500.m) in-building
 ■ Optional range 17 miles (30 km) line-of-sight

Applications: Field operations, irrigation, PLC remote i/o, lighting, process, pumps, generators, solar systems, water management, plantations, remote monitoring, mobile, security, robots, conveyor control, traffic control, test and research equipment, industrial process, plc extension, wire replacement, hazardous area remotes.






939222 NEMA4
Bidirectional Analog - Digital
With (2) Two 4-20 mA and (2) Two Digital Signals

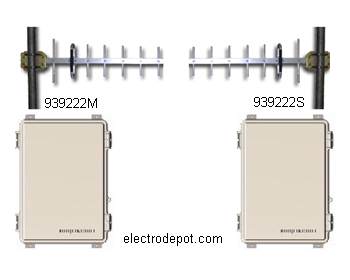

Set with Master & Slave
■  License free 900 MHz Industrial ISM band
■  Antenna sma 50 Ohm,
2 Digital input     Dry Contact N/O
2 Relay outputs:  6.Amp SPDT @240V Pilot Duty
2 Analog inputs:  4-20mA,  Z: 20 Mohm
2 Analog outputs: 4-20mA,  700 ohm @24V

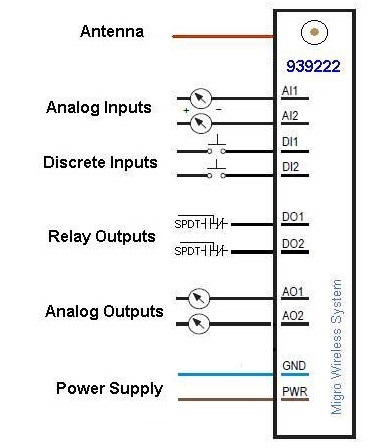

Wiring diagram & installation instructions

  939222  Please request current price

.

938204

Bidirectional Wireless  4 Channel I/O Digital





Set with Master & Slave

 Each one with:

4 Digital inputs, N/O Dry Contact,

4 Relay outputs SPST  5A, 240V Pilot duty class 2

Operation in 12 or 24 VDC



Specifications

938204 Price request


.

 938208


Bidirectional Wireless  8 Channel I/O Digital

Set with Master & Slave

  Each one with:

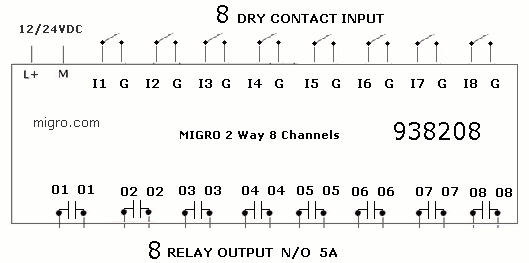

8 Digital inputs, N/O Dry Contact,

8 Relay outputs SPST 5A, 240V Pilot duty class 2

Operation in 12 or 24 VDC

 Specifications
 938208




   938208   Quote request form





















                 Antenna Selection

Transmission range calculator

938432
3 Element Beam/Yagi Antenna


433 MHz, Gain: 7 dBi,  Rating: 150 Watts,
With 10' Coax Cable and connector
Base Length: 18", Weight: 1.0lb

938455
5 Element Beam  Yagi Antenna

433 MHz, Gain: 9 dBi  Rating: 150 Watts
Impedance 50 ohms  N terminal

Vertical beam 55 degrees
Horizontal beam 60 degrees
With N female termination
Base Length: 32", Weight: 4.0lb

938433
12 Element Beam/Yagi Antenna


433 MHz, Gain: 14 dBi  Rating: 150 Watts
Impedance 50 ohms N terminal
Vertical beam 42 degrees
Horizontal beam 45 degrees
With N female termination
Base Length: 64", Weight: 5.0lb

938438
Omni 2.5 dBi Antenna


433 MHz, Gain: 2.5dBi,  Rating: 150 Watts,
With 10' Coax Cable and connector
Length: 37", Weight: 3.0lb





Specifications
   Digital  Input / Output
Supply power 12 VDC ±10% @ 600 mA
Inputs N/O Normally open digital dry contact
Outputs Relay contact 5Amp SPST 240V Pilot duty
Output Mode Normal or Retain status
Ambient temp 14° to 140° F (-10° to 60° C)
Ambient RH 5% to 95% RH non condensing
Connection Terminal screws DIN
Response 500 msec full duplex
Weight 5.2 lb (2.40kg)  each unit, 2 and 4 channel
Dimensions w NEMA4 Enclosure 12"W x 10"H x 6"D (300 x 240 x 150 mm)
   Radio System
Frequency 433 MHz license free industrial
Receiver  Digital 16 bit, sensitivity -110 dBm
Configuration DIP switch
Data rate 19.2 KBPS Encoded
Antenna external 50 Ohm  (optional)
Compliance FCC CFR part 15.247 ISM
Digital Transmission Gaussian_frequency-shift_keying
Transmitter channels 16 addresses per system
Transmitter power per FCC Part 15.249,  50mV/m @ 3m
Enclosure Selection NEMA4 selection: Fiber or Metal.
